Electrical systems in industrial facilities often carry large volumes of power and control cables that need reliable support throughout their service life. As projects become more demanding, selecting the right cable management solution becomes just as important as choosing quality cables. Among the various options available, ladder cable trays are widely preferred for applications that require strength, ventilation, and easy cable access.
For industries planning new installations or expanding existing infrastructure, working with a dependable ladder cable tray manufacturer in Pune helps ensure that the cable management system is designed to meet both present and future operational requirements.
What Is a Ladder Cable Tray?
A ladder cable tray consists of two parallel side rails connected by evenly spaced cross members, creating a ladder-like structure. This open design allows cables to be supported securely while providing excellent airflow around them.
Unlike perforated cable trays, ladder cable trays have a larger open area, making them particularly suitable for heavy power cables that generate significant heat during operation.
Because of their robust construction, ladder cable trays are commonly used in industrial environments where large cable networks need dependable structural support.
Why Ladder Cable Trays Are Preferred for Industrial Projects
Ladder cable trays offer several advantages that make them suitable for demanding electrical installations.
Excellent Heat Dissipation
Power cables generate heat during operation, especially when carrying high electrical loads. The open ladder design promotes natural air circulation, helping heat dissipate efficiently and reducing the possibility of excessive temperature buildup around the cables.
High Load-Bearing Capacity
Industrial facilities often require cable trays capable of supporting multiple heavy cables over long distances. Ladder cable trays are designed to handle higher loads while maintaining structural stability when installed according to engineering guidelines.
Simplified Cable Installation
The open construction allows electricians to place, arrange, and secure cables more easily compared to enclosed systems. It also provides flexibility when adding or replacing cables during future upgrades.
Convenient Maintenance
Routine inspections become much easier because cables remain visible and accessible. Maintenance teams can identify potential issues, replace damaged cables, or expand existing systems without dismantling large sections of the installation.
Common Applications of Ladder Cable Trays
Ladder cable trays are widely used across Pune's growing industrial and commercial sectors. They are particularly suitable for projects where heavy electrical loads and long cable runs are involved.
Typical applications include
- Manufacturing plants
- Automotive production facilities
- Power generation units
- Pharmaceutical industries
- Oil and gas installations
- Chemical processing plants
- Data centres
- Metro and railway infrastructure
- Commercial high-rise buildings
- Large warehouses and logistics hubs
These environments often require cable management systems that combine durability with long-term operational efficiency.
Factors to Consider Before Selecting a Ladder Cable Tray
Every project has different electrical and structural requirements. Selecting the appropriate ladder cable tray involves evaluating several important factors.
Cable Load Requirements
The number, size, and weight of cables directly influence the tray specification. Heavy-duty applications require stronger tray designs capable of supporting larger loads without excessive deflection.
Span Between Supports
The distance between support points affects the structural performance of the tray. Longer spans generally require stronger materials or additional reinforcement to maintain stability.
Material Selection
Different installation environments demand different materials.
Common options include
- Mild Steel (MS)
- Galvanized Iron (GI)
- Hot-dip galvanized steel
- Stainless steel
- Powder-coated finishes
The appropriate material depends on environmental exposure, humidity, corrosion risk, and project specifications.
Expansion Requirements
Electrical infrastructure often grows over time. Selecting a ladder cable tray with sufficient capacity for future cable additions can reduce modification costs later.
Accessories That Complete the System
An efficient cable management system includes more than straight ladder trays. Various accessories are required to accommodate changes in direction and installation layouts.
These may include
- Horizontal bends
- Vertical bends

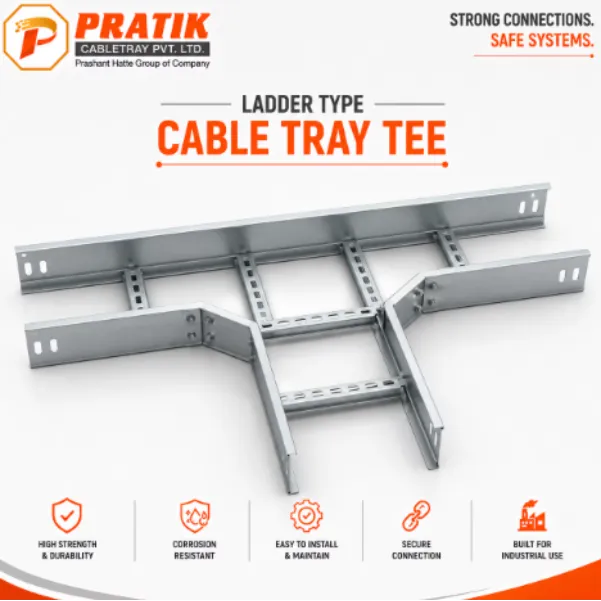

- Tee sections
- Cross junctions
- Reducers
- Coupler plates
- Covers
- Support brackets
- Fasteners and clamps
Using compatible accessories helps maintain structural integrity throughout the installation.
Advantages of Choosing a Local Manufacturer in Pune
Working with a ladder cable tray manufacturer in Pune provides practical benefits for regional projects.
Faster Supply
Construction schedules often require materials within tight deadlines. Local manufacturing helps reduce transportation time and improves delivery reliability.
Better Technical Coordination
Electrical consultants and EPC contractors frequently need customized dimensions or project-specific fabrication. Nearby manufacturers can often respond more efficiently to such requests.
Simplified Logistics
Transporting long cable trays across large distances can increase handling challenges. Local sourcing supports smoother logistics while reducing transit-related delays.
Support for Custom Projects
Industrial projects rarely follow identical designs. Manufacturers with in-house fabrication capabilities can produce trays in customized sizes, thicknesses, and finishes that align with project specifications.
How to Identify a Reliable Manufacturer
Before selecting a supplier, it is worth evaluating several aspects beyond product pricing.
Look for manufacturers that offer
- Consistent manufacturing quality
- A wide range of tray sizes
- Complete cable management accessories
- Custom fabrication capabilities
- Quality inspection procedures
- Compliance with relevant industry standards
- Reliable production and delivery schedules
Manufacturers such as Pratik Cabletray Pvt. Ltd. support commercial and industrial projects by producing ladder cable trays along with complementary cable management solutions for installations across Pune and Maharashtra.
Ladder cable trays remain one of the most dependable solutions for heavy-duty electrical applications because they combine structural strength, excellent ventilation, and easy accessibility. Choosing the right tray design and partnering with an experienced manufacturer helps create electrical systems that are easier to install, maintain, and expand as project requirements evolve.
